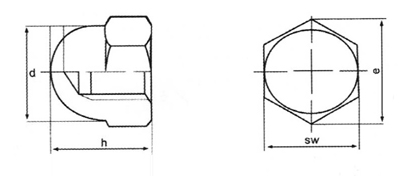

M DİŞ ÖLÇÜSÜ |
P DİŞ ADIMI |
SW ANAHTAR AĞZI |
e KÖŞEGEN |
d KÜRE ÇAPI |
h KALINLIK |
BİRİM AĞIRLIK gr |
| M4 | 0,70 | 7,0 | 7,66 | 6,5 | 8,0 |
|
| M5 | 0,80 | 8,0 | 8,79 | 7,5 | 10,0 | |
| M6 | 1,00 | 10,0 | 11,05 | 9,5 | 12,0 | 4,66 |
| M8 | 1,25 | 13,0 | 14,38 | 12,5 | 15,0 | 11,0 |
| M10 | 1,50 | 17,0 | 18,90 | 16,0 | 18,0 | 20,1 |
| M12 | 1,75 | 19,0 | 21,10 | 18,0 | 22,0 | 28,3 |
| M14 | 2,00 | 22,0 | 24,50 | 21,0 | 25,0 | 57,2 |
| M16 | 2,00 | 24,0 | 26,75 | 23,0 | 28,0 | 54,3 |
| M18 | 2,50 | 27,0 | 30,15 | 26,0 | 32,0 | 95,0 |
| M20 | 2,50 | 30,0 | 33,50 | 28,0 | 34,0 | 104,0 |
| M22 | 2,50 | 32,0 | 35,70 | 31,0 | 39,0 | 129,0 |
| M24 | 3,00 | 36,0 | 40,00 | 34,0 | 42,0 | 216,0 |
|
Malzeme : 6 KALİTE ÇELİK / 8 KALİTE ÇELİK / 10 KALİTE ÇELİK 304 PASLANMAZ (A2 İNOX) / 316 PASLANMAZ (A4 İNOX) |
||||||
