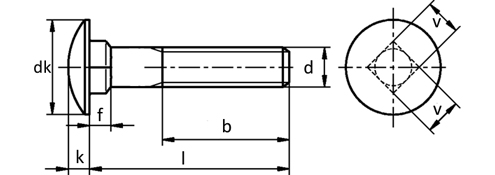

| d |
P (Adım) |
k (max) |
dk (max) |
f (max) |
v (max) |
b (L ≤ 125) |
b (125 < L ≤ 200) |
b (L > 200) |
L | |
| M 5 | 0,8 | 3,30 | 13,55 | 4,10 | 5,50 | 16 | 22 | - | 16 - 80 | |
| M 6 | 1 | 3,88 | 16,55 | 4,60 | 6,50 | 18 | 24 | - | 16 - 150 | |
| M 8 | 1,25 | 4,88 | 20,65 | 5,60 | 8,60 | 22 | 28 | 41 | 20 - 150 | |
| M 10 | 1,5 | 5,38 | 24,65 | 6,60 | 10,60 | 26 | 32 | 45 | 20 - 200 | |
| M 12 | 1,75 | 6,95 | 30,65 | 8,75 | 12,70 | 30 | 36 | 49 | 30 - 200 | |
| M 16 | 2 | 8,95 | 38,80 | 12,90 | 16,70 | 38 | 44 | 57 | 55 - 200 | |
| M 20 | 2,5 | 11,05 | 46,80 | 15,90 | 20,85 | 46 | 52 | 65 | 70 - 200 | |
